Serpentine channel

11 variants

A single channel that runs back and forth so that a long path fits inside a small square. Nothing moves and there is no air line — it is a length of pipe in a compact shape.

What it is for. Buying time or resistance. A longer path means liquid spends longer in transit, which gives two streams more opportunity to blend, and it raises the pressure needed to push flow through.

Variants

Sizes below are given in px: units of the design grid these parts were drawn on, where one unit is 0.0076 mm. That is not the printer's pixel. The printer has its own, different pixel size, and nothing on this page is expressed in it — see Hardware and process.

serpentine_100px_0

H.R.3.3 design

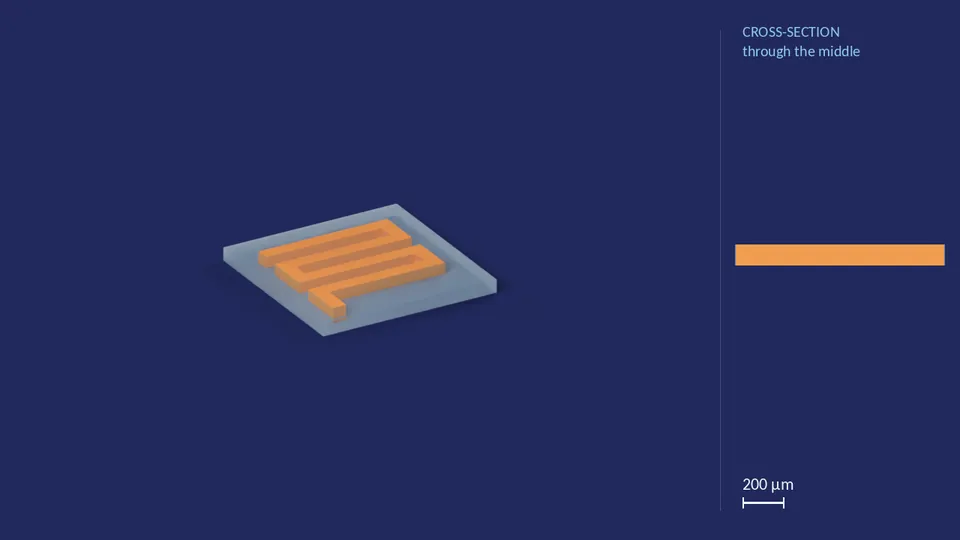

serpentine_100px_0. A computer render of the cell's channels, in orange, inside its footprint of 1.37 mm × 1.37 mm (from its LEF), drawn see-through; not a photograph. Beside it, its cross-section through the middle.
Parameters for serpentine_100px_0
Footprint180 × 180 px
Legs4 × 120 px
Path length614 px
Channel cross-section14 px × 10 layers
Ports1 fluid in, 1 fluid out
Layout grid0.0076 mm per px

Files for this variant

  • LEFserpentine_100px_0.lef0.5 KBDownload
  • SCADserpentine_100px_0.scad15.8 KBDownload

serpentine_150px_0

H.R.3.3 design

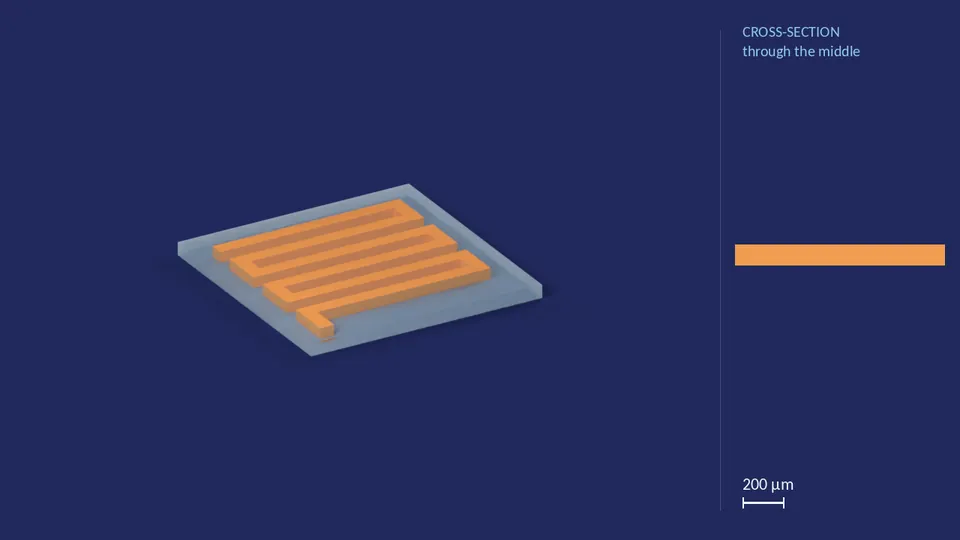

serpentine_150px_0. A computer render of the cell's channels, in orange, inside its footprint of 1.82 mm × 1.82 mm (from its LEF), drawn see-through; not a photograph. Beside it, its cross-section through the middle.
Parameters for serpentine_150px_0
Footprint240 × 240 px
Legs6 × 180 px
Path length1274 px
Channel cross-section14 px × 10 layers
Ports1 fluid in, 1 fluid out
Layout grid0.0076 mm per px

Files for this variant

  • LEFserpentine_150px_0.lef0.5 KBDownload
  • SCADserpentine_150px_0.scad15.8 KBDownload

serpentine_200_100px_0

H.R.3.3 design

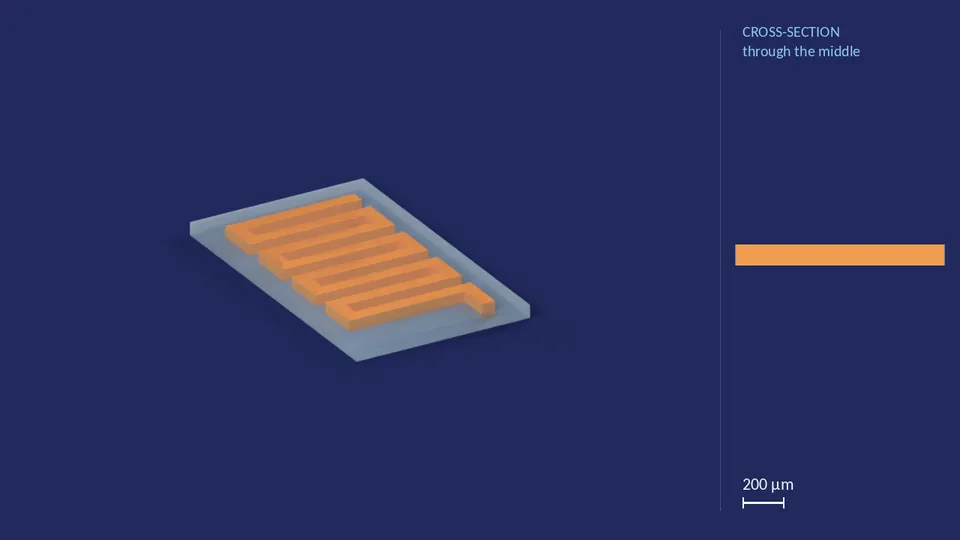

serpentine_200_100px_0. A computer render of the cell's channels, in orange, inside its footprint of 2.28 mm × 1.37 mm (from its LEF), drawn see-through; not a photograph. Beside it, its cross-section through the middle.
Parameters for serpentine_200_100px_0
Footprint300 × 180 px
Legs8 × 120 px
Path length1214 px
Channel cross-section14 px × 10 layers
Ports1 fluid in, 1 fluid out
Layout grid0.0076 mm per px

Files for this variant

  • LEFserpentine_200_100px_0.lef0.5 KBDownload
  • SCADserpentine_200_100px_0.scad16.0 KBDownload

serpentine_200px_0

H.R.3.3 design

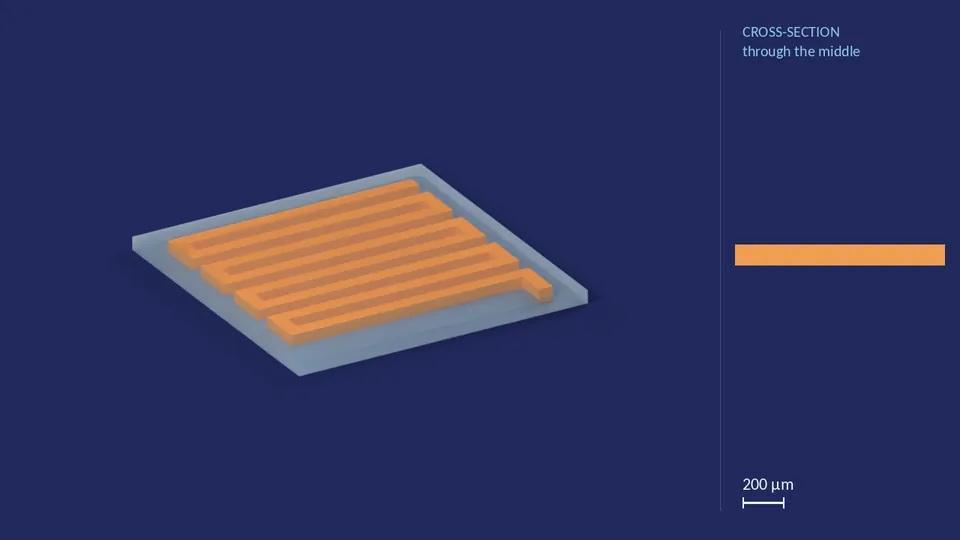

serpentine_200px_0. A computer render of the cell's channels, in orange, inside its footprint of 2.28 mm × 2.28 mm (from its LEF), drawn see-through; not a photograph. Beside it, its cross-section through the middle.
Parameters for serpentine_200px_0
Footprint300 × 300 px
Legs8 × 240 px
Path length2174 px
Channel cross-section14 px × 10 layers
Ports1 fluid in, 1 fluid out
Layout grid0.0076 mm per px

Files for this variant

  • LEFserpentine_200px_0.lef0.5 KBDownload
  • SCADserpentine_200px_0.scad16.0 KBDownload

serpentine_200px_3

H.R.3.3 design

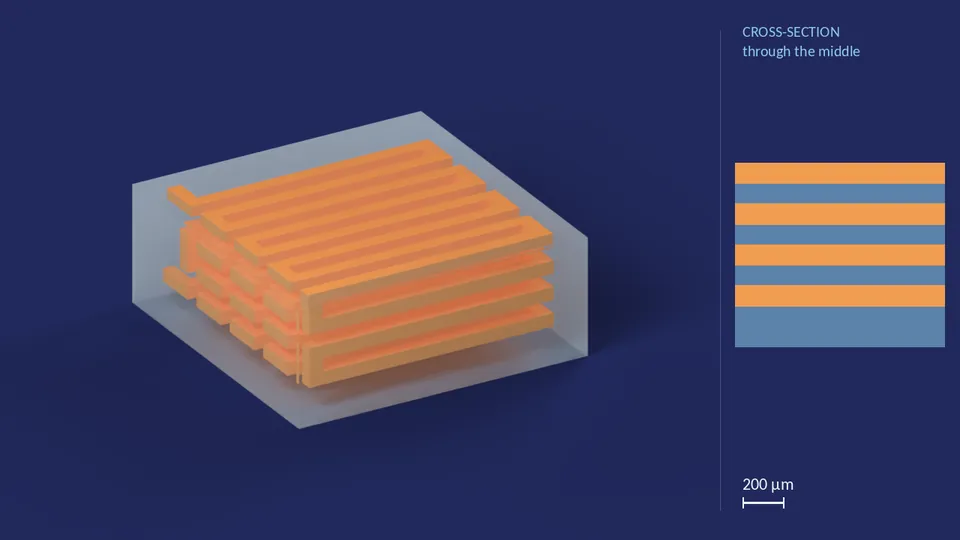

serpentine_200px_3. A computer render of the cell's channels, in orange, inside its footprint of 2.28 mm × 2.28 mm (from its LEF), drawn see-through; not a photograph. Beside it, its cross-section through the middle.
Parameters for serpentine_200px_3
Footprint300 × 300 px
Legs32 × 240 px
Levels4, joined by risers of 20 layers
Path length8580 px in the plane
Channel cross-section14 px × 10 layers
Ports1 fluid in, 1 fluid out
Layout grid0.0076 mm per px

Files for this variant

  • LEFserpentine_200px_3.lef0.7 KBDownload
  • SCADserpentine_200px_3.scad4.1 KBDownload

serpentine_300px_0

H.R.3.3 design

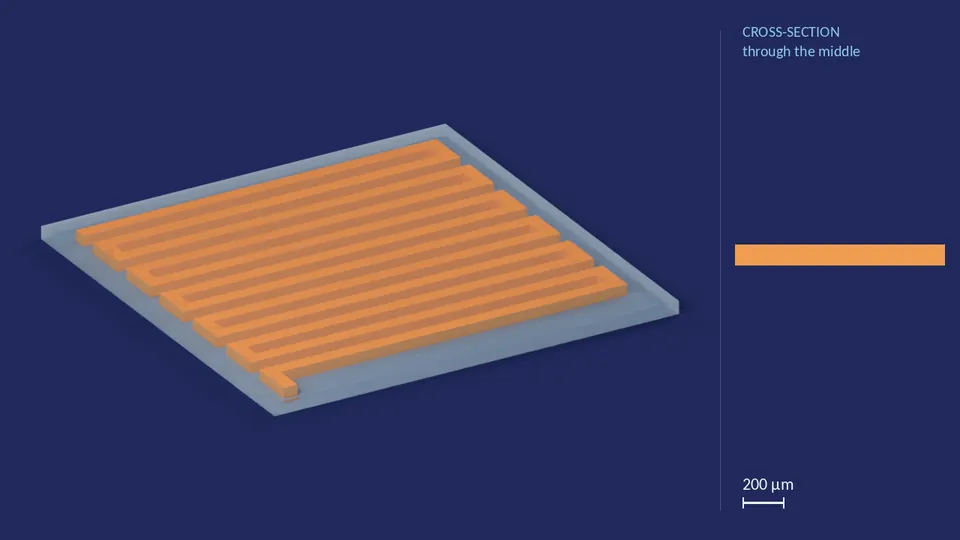

serpentine_300px_0. A computer render of the cell's channels, in orange, inside its footprint of 3.19 mm × 3.19 mm (from its LEF), drawn see-through; not a photograph. Beside it, its cross-section through the middle.
Parameters for serpentine_300px_0
Footprint420 × 420 px
Legs12 × 360 px
Path length4694 px
Channel cross-section14 px × 10 layers
Ports1 fluid in, 1 fluid out
Layout grid0.0076 mm per px

Files for this variant

  • LEFserpentine_300px_0.lef0.5 KBDownload
  • SCADserpentine_300px_0.scad16.5 KBDownload

serpentine_300px_1

H.R.3.3 design

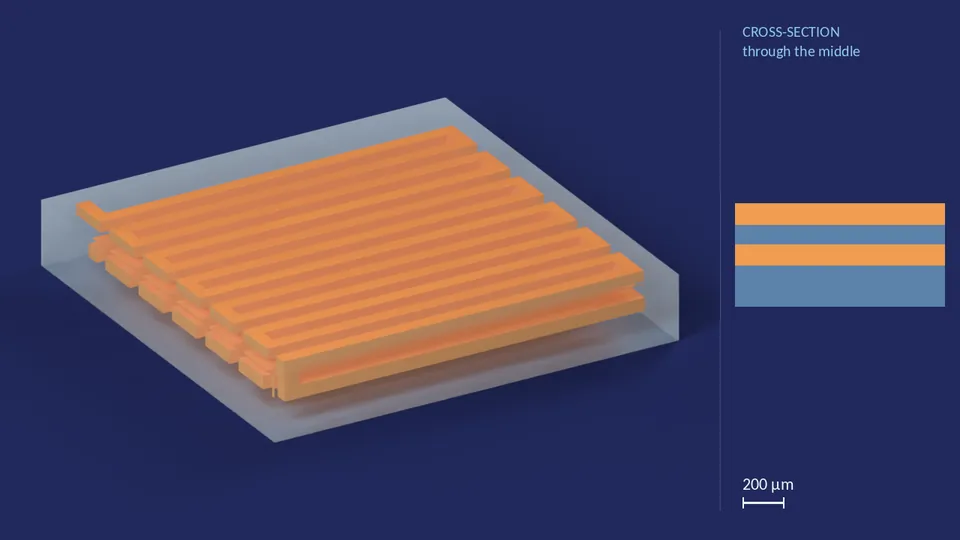

serpentine_300px_1. A computer render of the cell's channels, in orange, inside its footprint of 3.19 mm × 3.19 mm (from its LEF), drawn see-through; not a photograph. Beside it, its cross-section through the middle.
Parameters for serpentine_300px_1
Footprint420 × 420 px
Legs24 × 360 px
Levels2, joined by risers of 20 layers
Path length9330 px in the plane
Channel cross-section14 px × 10 layers
Ports1 fluid in, 1 fluid out
Layout grid0.0076 mm per px

Files for this variant

  • LEFserpentine_300px_1.lef0.6 KBDownload
  • SCADserpentine_300px_1.scad17.3 KBDownload

serpentine_300px_2

H.R.3.3 design

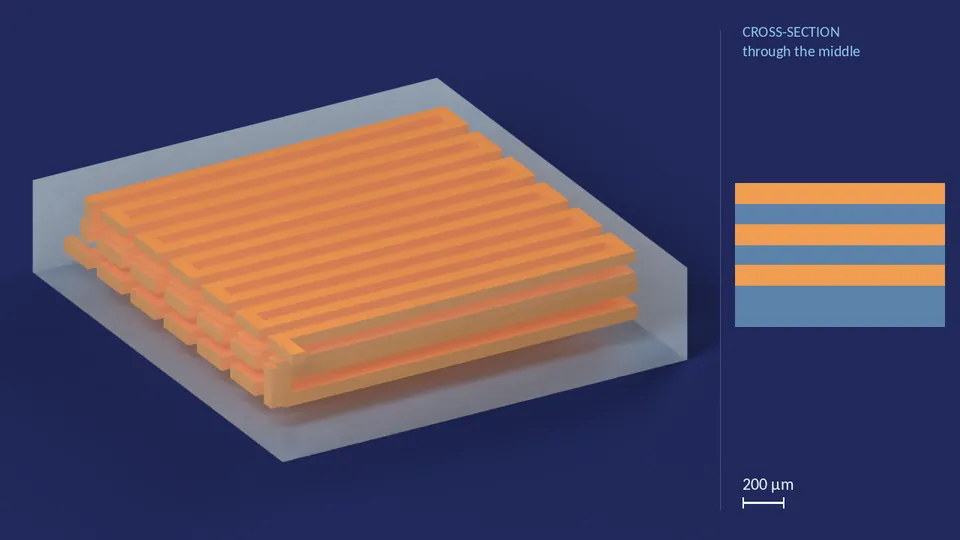

serpentine_300px_2. A computer render of the cell's channels, in orange, inside its footprint of 3.42 mm × 3.19 mm (from its LEF), drawn see-through; not a photograph. Beside it, its cross-section through the middle.
Parameters for serpentine_300px_2
Footprint450 × 420 px
Legs36 × 360 px
Levels3, joined by risers of 20 layers
Path length14024 px in the plane
Channel cross-section14 px × 10 layers
Ports1 fluid in, 1 fluid out
Layout grid0.0076 mm per px

Files for this variant

  • LEFserpentine_300px_2.lef0.6 KBDownload
  • SCADserpentine_300px_2.scad4.0 KBDownload

serpentine_300px_3

H.R.3.3 design

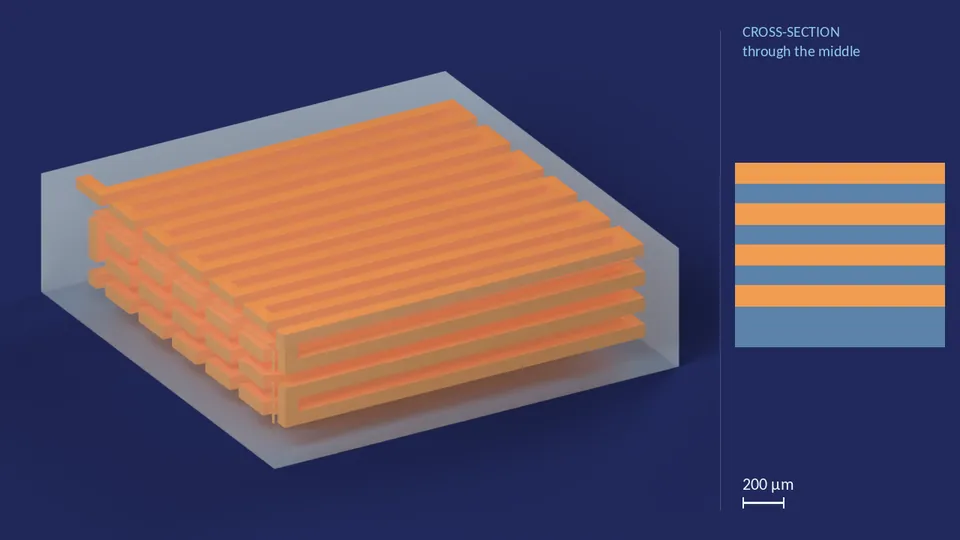

serpentine_300px_3. A computer render of the cell's channels, in orange, inside its footprint of 3.19 mm × 3.19 mm (from its LEF), drawn see-through; not a photograph. Beside it, its cross-section through the middle.
Parameters for serpentine_300px_3
Footprint420 × 420 px
Legs48 × 360 px
Levels4, joined by risers of 20 layers
Path length18630 px in the plane
Channel cross-section14 px × 10 layers
Ports1 fluid in, 1 fluid out
Layout grid0.0076 mm per px

Files for this variant

  • LEFserpentine_300px_3.lef0.7 KBDownload
  • SCADserpentine_300px_3.scad19.4 KBDownload

serpentine_300px_4

H.R.3.3 design

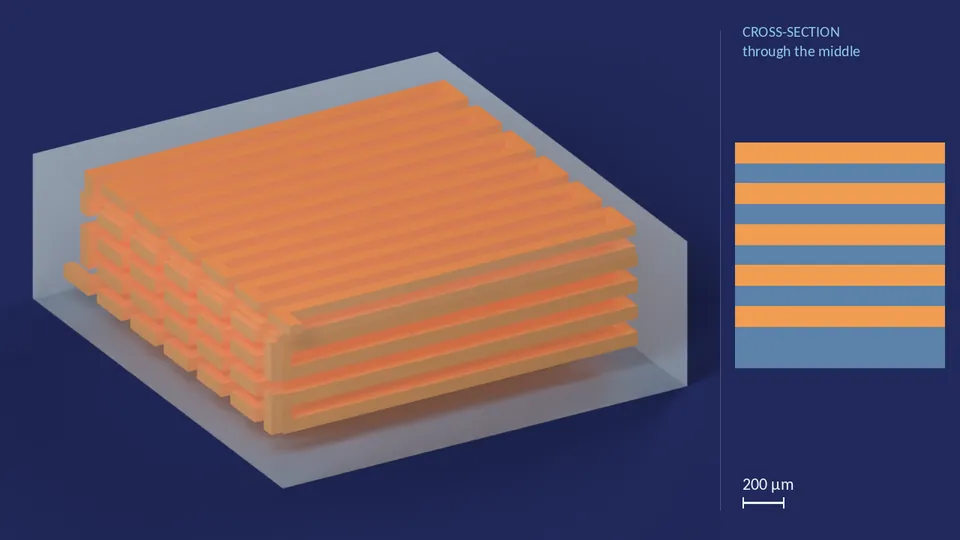

serpentine_300px_4. A computer render of the cell's channels, in orange, inside its footprint of 3.42 mm × 3.19 mm (from its LEF), drawn see-through; not a photograph. Beside it, its cross-section through the middle.
Parameters for serpentine_300px_4
Footprint450 × 420 px
Legs60 × 360 px
Levels5, joined by risers of 20 layers
Path length23319 px in the plane
Channel cross-section14 px × 10 layers
Ports1 fluid in, 1 fluid out
Layout grid0.0076 mm per px

Files for this variant

  • LEFserpentine_300px_4.lef0.7 KBDownload
  • SCADserpentine_300px_4.scad6.1 KBDownload

serpentine_50px_0

H.R.3.3 design

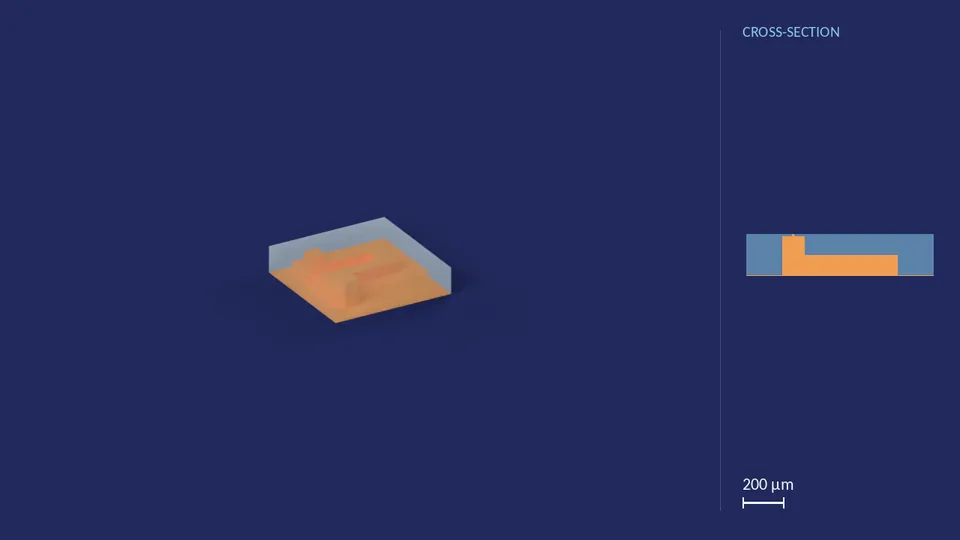

serpentine_50px_0. A computer render of the cell's channels, in orange, inside its footprint of 912 µm × 912 µm (from its LEF), drawn see-through; not a photograph. Beside it, its cross-section through the middle.
Parameters for serpentine_50px_0
Footprint120 × 120 px
Legs2 × 60 px
Path length194 px
Channel cross-section14 px × 10 layers
Ports1 fluid in, 1 fluid out
Layout grid0.0076 mm per px

Files for this variant
